Solar Back Glass for Photovoltaic Modules

Product Advantages

1. High light transmittance

Using ultra-white glass material, the light transmittance can usually reach more than 91%, which can allow more light to pass through the back glass to reach the battery cell, reduce light loss, and improve the power generation efficiency of the component.

2. Good insulation

It has excellent electrical insulation performance, and the insulation resistance can reach more than 1000MΩ·cm, which can effectively prevent the battery cell from leaking electricity from the outside world and ensure the safe operation of the component.

3. Strong mechanical properties

Through special tempering process treatment, it has high impact strength and bending strength, can withstand wind loads of more than 2400Pa and snow loads of more than 500Pa, and can withstand harsh natural environments.

4. Excellent weather resistance

It has excellent resistance to high and low temperatures, humidity and heat, and UV rays. It can work stably in the temperature range of -40℃ to 85℃. After more than 2000 hours of humidity and heat tests and more than 500 hours of UV tests, the performance has no obvious decline.

Product Parameters

Thickness : 2.0mm

Maximum Size : 1000*2000mm

Minimum Size : 300*300mm

Size :

1) side length L≤1000mm allowable deviation +0，-1.5mm;

2) side length L≥1000mm allowable deviation ±1mm；

Solar Transmittance : ≥93.8%

Wavelength Range : 380-1100nm

Diagona : Difference ≤2 mm

Hardness : 3H

Maximum iron content : ≤120ppm

Warpage :

1）Global warpage ≤0.3%；

2）Local warp age≤0.5 mm measured on a distance of 300 mm ；

Corner Cut : Width 1-4mm

Resistance to dirt :

Paste the 3M tape on the smooth side of AR glass in 20 c ㎡.Remove tape and inspection adhesion results.

If  the contamination less than 1 c ㎡and the quantity no more than 2pcs , it's passed.

Roughness : Smooth side average 0.4~1.2μm.

Advantages :

1)Smoothness is better than industry standards.

2)Meets the requirements of double-glass which use glass to against wind load,snow load and falling ball.

Product Application

1. Centralized photovoltaic power station

In large-scale centralized photovoltaic power stations, it can provide reliable back support and protection for a large number of photovoltaic modules to ensure long-term stable power generation of the power station.

2. Distributed photovoltaic power generation system

Applicable to distributed photovoltaic power generation projects such as industrial and commercial roofs and residential roofs, which can meet different installation environments and usage requirements and provide users with green electricity.

3. Special application scenarios

In some special application scenarios, such as small photovoltaic systems such as solar street lights, solar traffic lights, and solar mobile power supplies, it can also play an important role to ensure stable operation of the system.

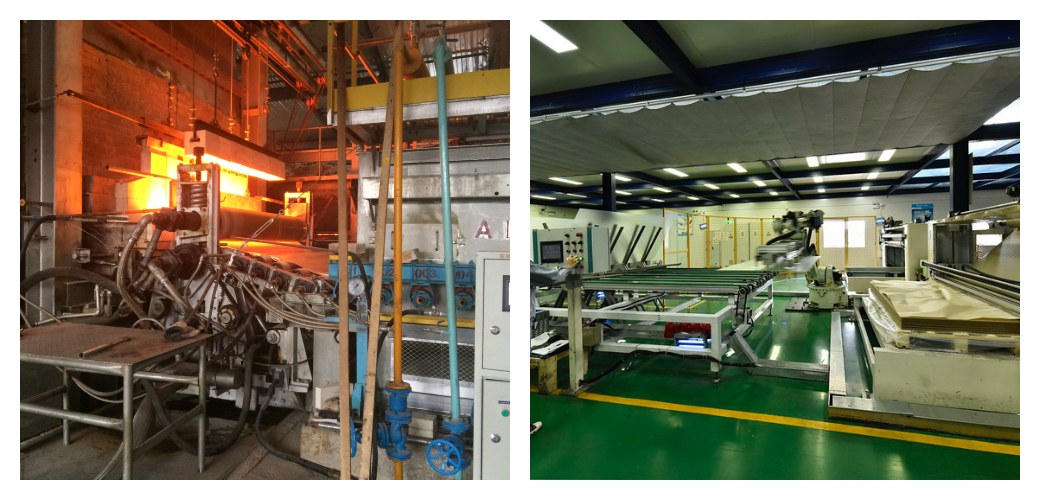

Equipment and Production Line

FAQ

Q: How can I get a quotation?

A: To provide an accurate quote, please share specific details such as size, thickness, quantity, and any customization requirements.

Q: Do you offer customized production?

A: Yes, our expert technical team specializes in custom manufacturing. We can produce Low Iron Solar Glass tailored to your exact specifications.

Q: How do you package the glass? Is it safe for transportation?

A: We use heavy-duty wooden crates, specially designed for ocean and land transportation. Our skilled loading team, with over four years of experience, ensures proper packing, securing, and container fixation. We will also provide loading pictures for your reference.

Q: Do you provide free samples?

A: Yes, we offer free samples. However, if you need a larger custom sample, freight may apply.
